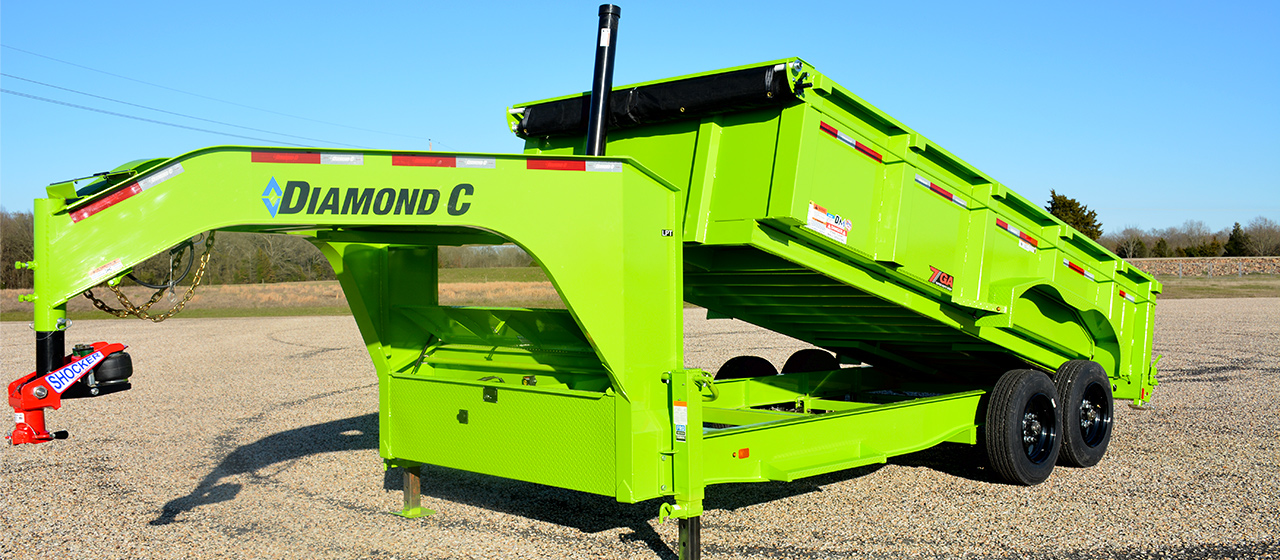

HEAVY DUTY LOW PROFILE TELESCOPIC DUMP TRAILER

Model: LPT

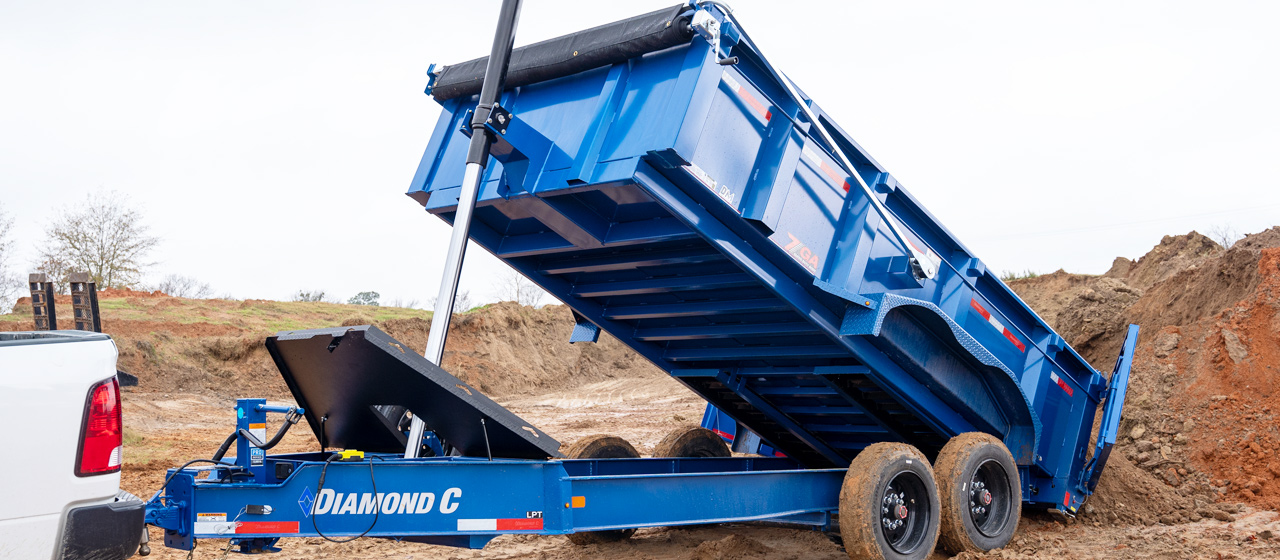

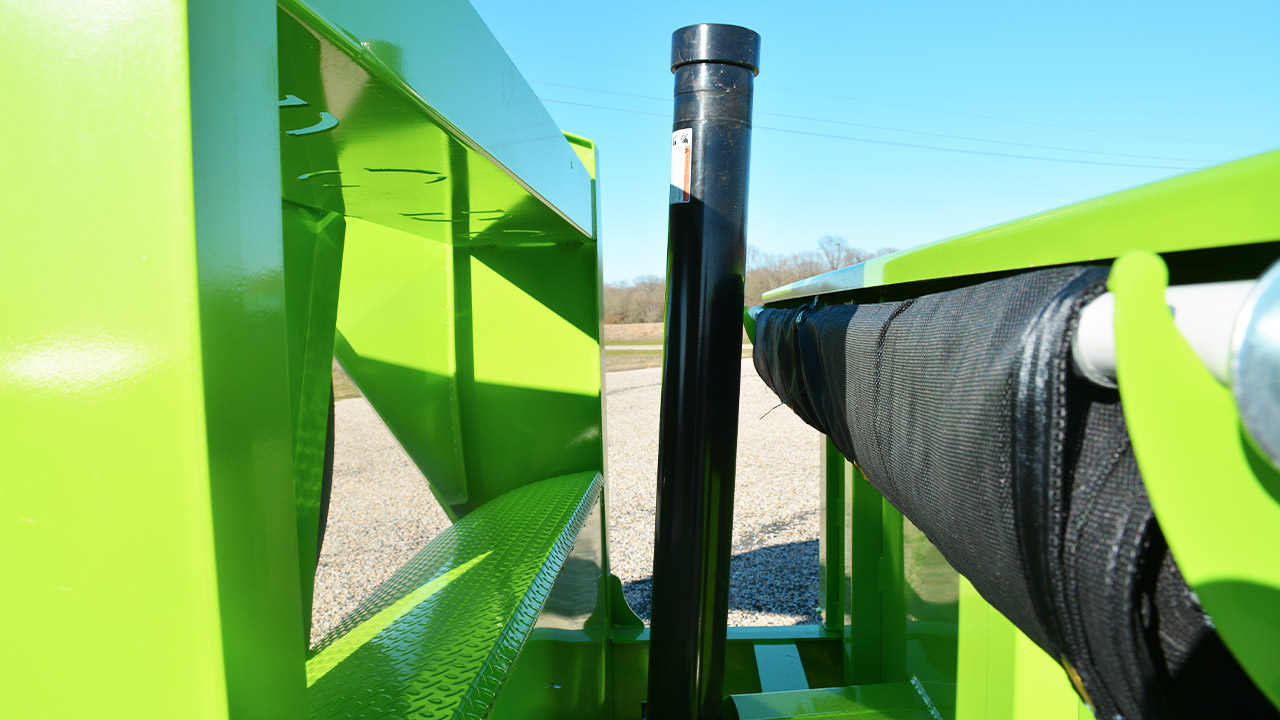

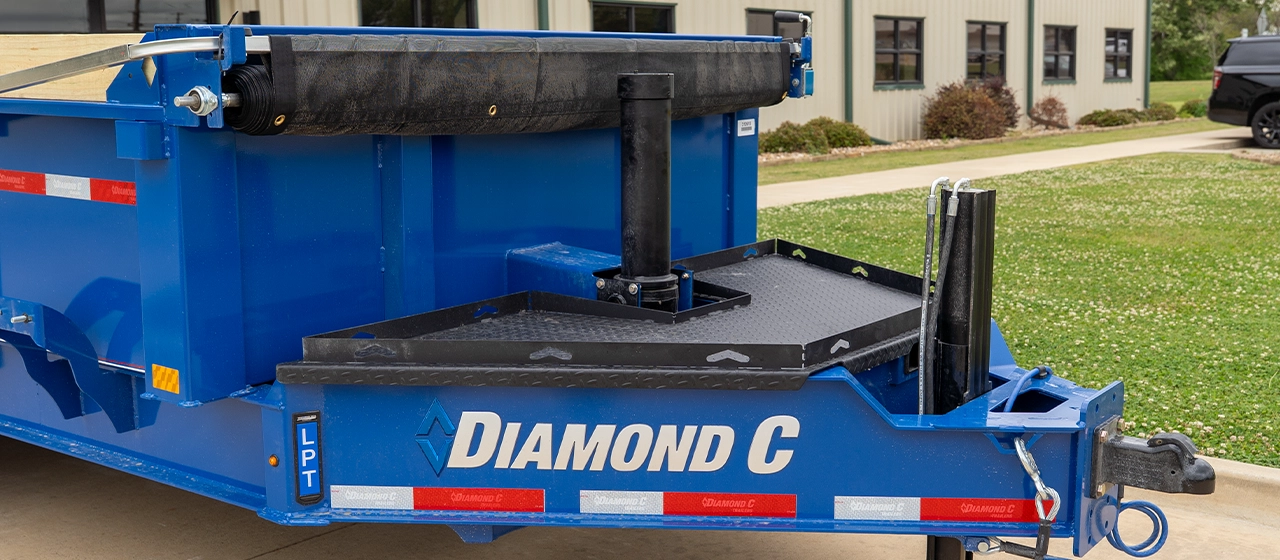

Combine our legendary LPD I-Beam frame dump trailer with a HD telescopic cylinder and what do you get? Maximum dumping leverage for your most extreme loads.

Build Your Own Trailer

Video

Photos

Where to buy

Finance

Dimensions PDF

Brochure PDF

General 1
Features 2

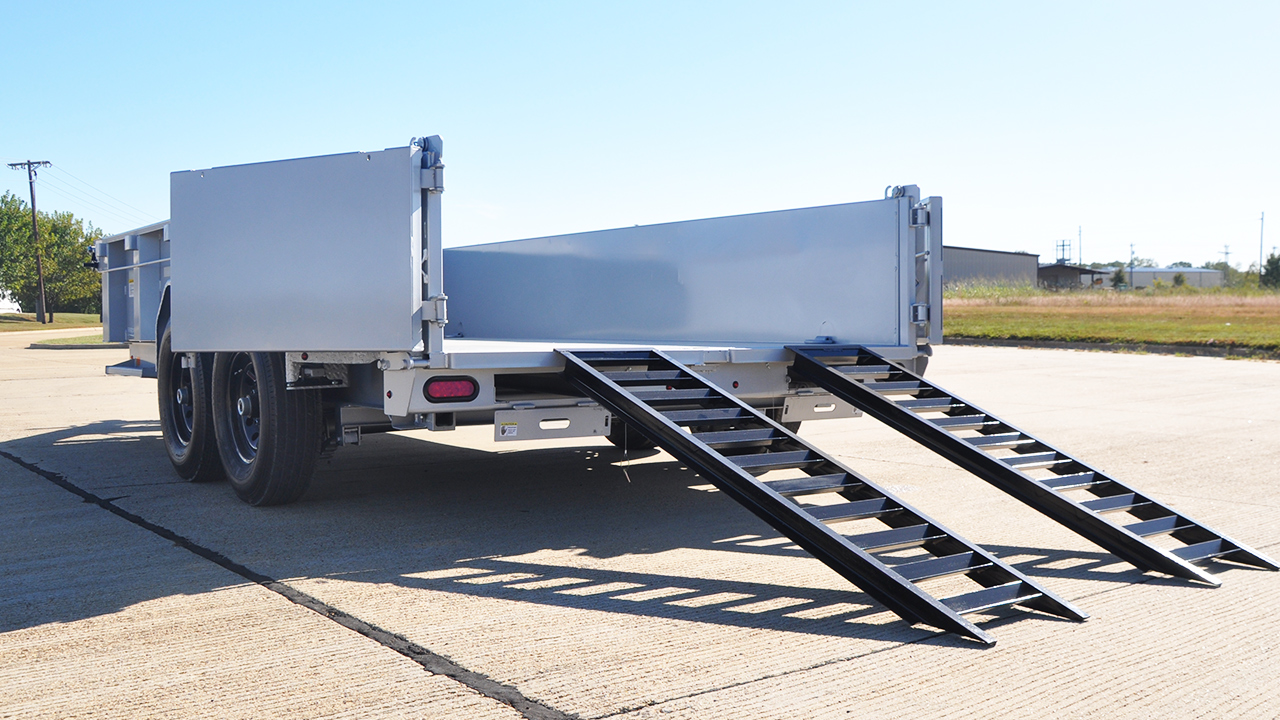

Loading Options 3
Tires & Wheels 4

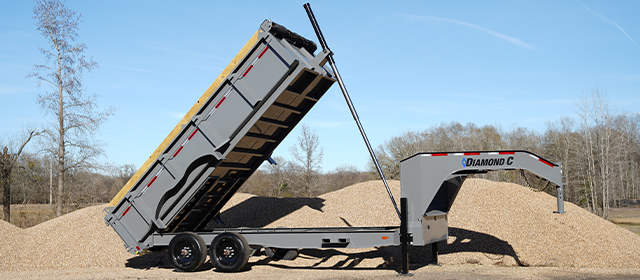

Model

GVWR

207 Package (14.9K GVWR)

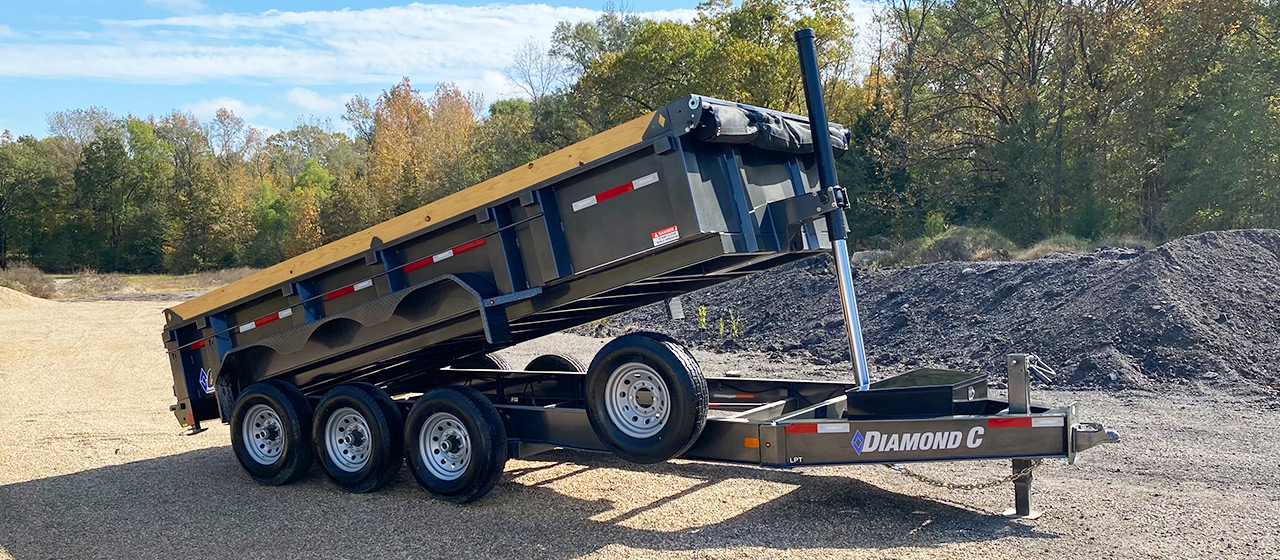

307 Package (24K GVWR)

Includes 3rd 7,000 lb Axle, 25,000 lb Flat-Mount Cast Coupler, 72" Heavy Duty Ramp Package

208 Package (18K GVWR)

Includes 2 - 8,000 lb Oil-Bath Electric Brake Axles, 20,000 lb Flat-Mount Cast Coupler, 72" Heavy Duty Ramp Package, ST215/75R17.5 Radial Tires, 81" Bed Width

210 Package (20K GVWR)

Includes 2 - 10,000 lb Oil Bath Torsion Brake Axles, 20,000 lb Flat-Mount Cast Coupler, 78" Heavy Duty Ramp Package, ST215/75R17.5 Radial Tires

Length/Width

Axles

2 - 7,000 lb Super Lube, Self-Adjust Electric Brakes

Learn More

3 - 7,000 lb Super Lube, Self-Adjust Electric Brakes

Learn More

2 - 8,000 lb Oil-Bath, Self-Adjust Electric Brakes

Learn More

2 - 10,000 lb Oil Bath, Self-Adjust Torsion Brakes

Learn More

Straight Axles

Dump Main Frame

8" x 15 lb I-Beam Frame

Dump Body Frame

5" x 2" x 3/16" Rectangle Tube

Tongue

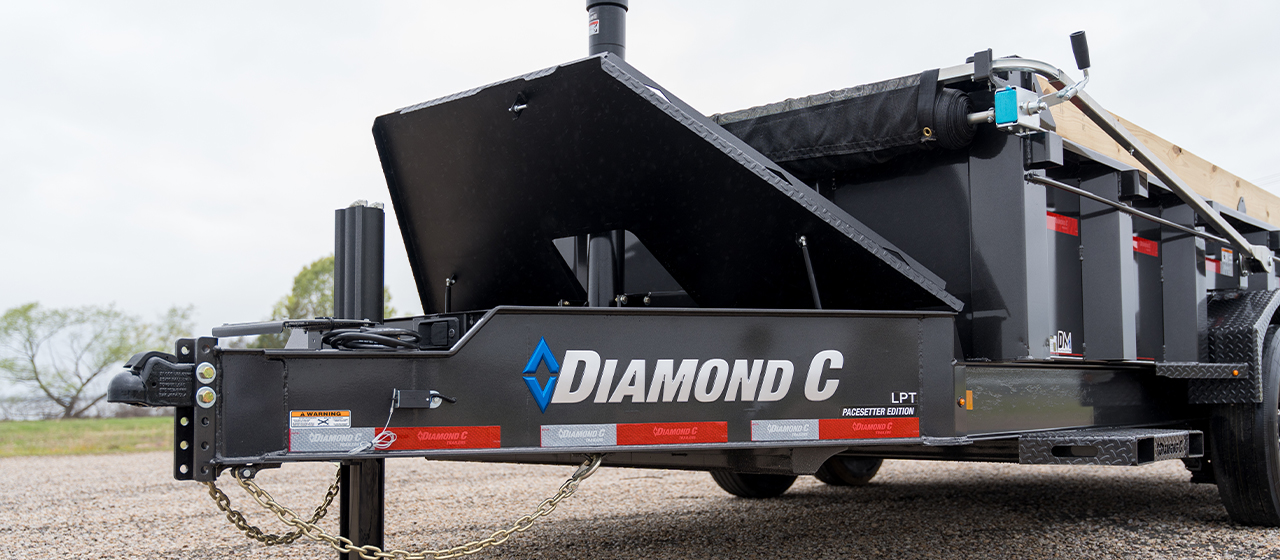

8" x 15 lb I-Beam Tongue, w/ Pump Box

Body Thickness

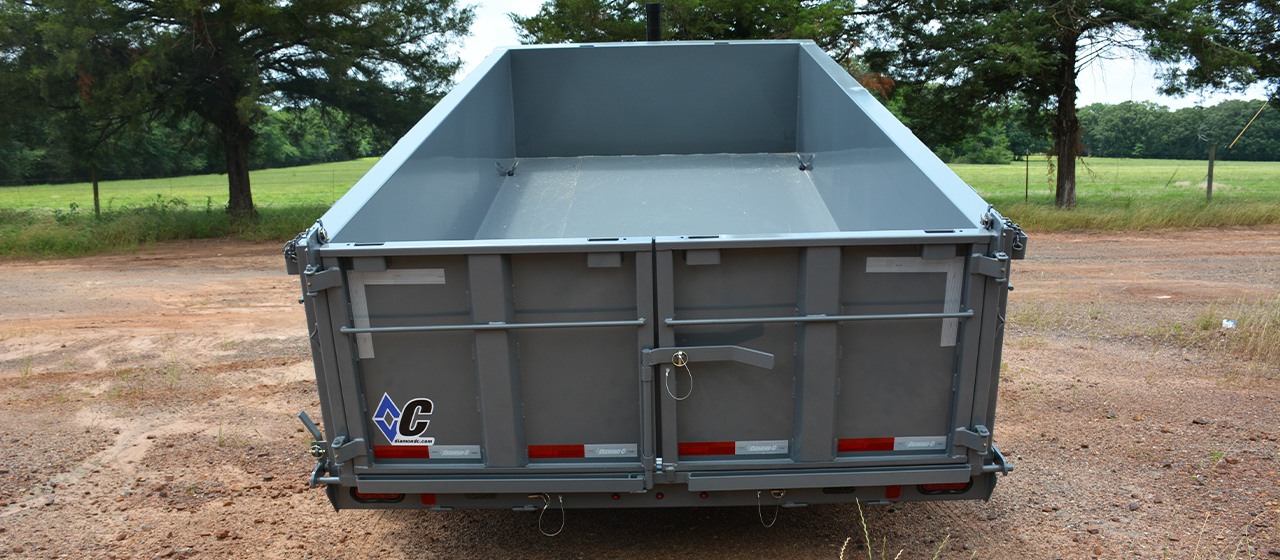

10 ga Body, Sides Integral with Floor

Super Duty Body Upgrade - 7 ga (3/16") Body, Floor & Sides

Sides

24" Tall Sides (10 ga)

32" Tall Sides (10 ga)

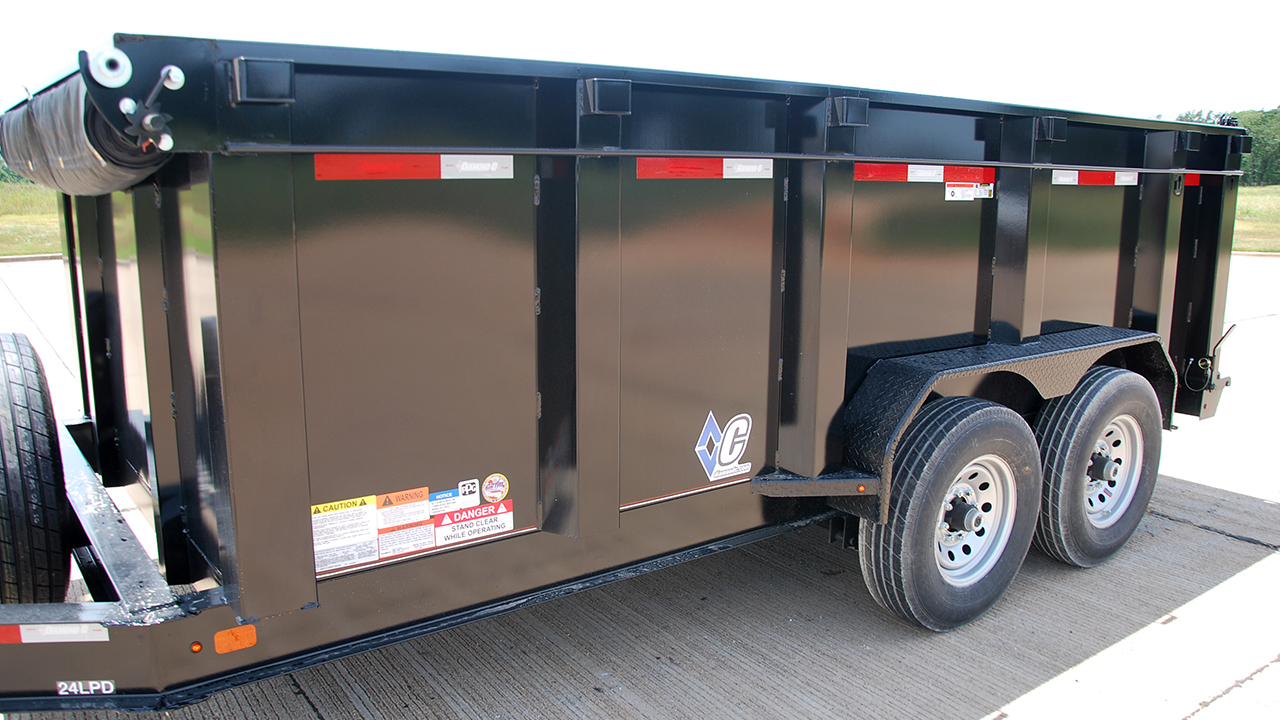

44" Tall Sides (10 ga)

24" Tall Sides (7 ga)

32" Tall Sides (7 ga)

44" Tall Sides (7 ga)

Side Extensions

None

24" Side Extensions (Expanded Metal)

Board Brackets w/ Raised Front

Cross-Members

3" Channel on 16" Centers

3" Channel on 12" Centers

Paint Type

DM Difference Maker Coating System

We partnered with Sherwin Williams to develop our own custom designed powder coat finishing system that provides long-lasting, rugged, and beautiful trailer finishes.

Special Color

Choose from a variety of our Special Colors below, or enter your own custom color of choice.

Paint Color

Black

Metallic Gray

Metallic Silver

White

Metallic Mocha

Metallic Blue

Red

Cement Gray

Commercial Yellow

Tractor Green

Industrial Orange

Model

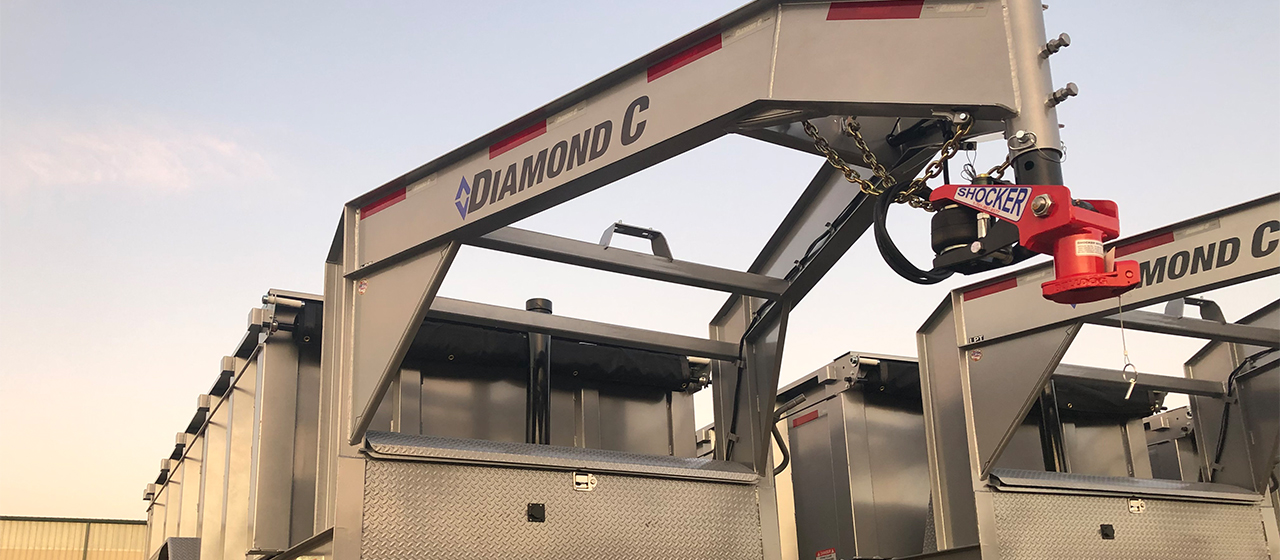

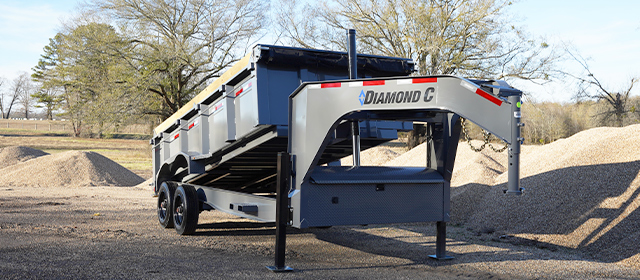

Gooseneck Package

12" x 14 lb I-Beam Gooseneck

Includes Bulldog BX1 Coupler, 2 - 12,000 lb Drop-Leg Jacks, Spare Mount, and Full-Width Diamond Plate Neck Box

Deck on the Neck

None

Bolt-on Deck on the Neck

7' x 8' Bolt-on Deck with Clearance Lights

Weld-on Deck on the Neck

7' x 8' Weld-on Deck with Clearance Lights

Gooseneck Coupler

Bulldog BX1

30,000 lb Square Load Leveler

Shocker Hitch Air Ride Coupler

Air Ride towing for a smoother, safer ride. Shocker Hitch helps to eliminate the jerks felt when towing on rough roads by directing the tow resistance through an airbag, producing a smooth ride. Utilizes the BX1 Coupler.

Watch Video

Coupler

2-5/16" - 15,000 lb Adjustable Cast

The 5 position adjustable coupler is made of high-strength cast steel with a wedge-latch lock. The wedge-latch lock applies continuous tension to the trailer ball for worry-free towing.

2-5/16" - 21,000 lb Demco EZ-Latch Adjustable

Adjustable Pintle Ring

Durable and sturdy steel construction designed for pintle hitches.

25,000 lb Flat-Mount Cast

Flat-Mount Adjustable Pintle Ring

Durable and sturdy steel construction designed for pintle hitches.

20,000 lb Flat-Mount Cast

2-5/16" - 21,000 lb Demco EZ-Latch Flat-Mount

Flat-Mount Adjustable Pintle Ring

Durable and sturdy steel construction designed for pintle hitches.

20,000 lb Flat-Mount Cast

2-5/16" - 21,000 lb Demco EZ-Latch Flat-Mount

Flat-Mount Adjustable Pintle Ring

Durable and sturdy steel construction designed for pintle hitches.

Jack

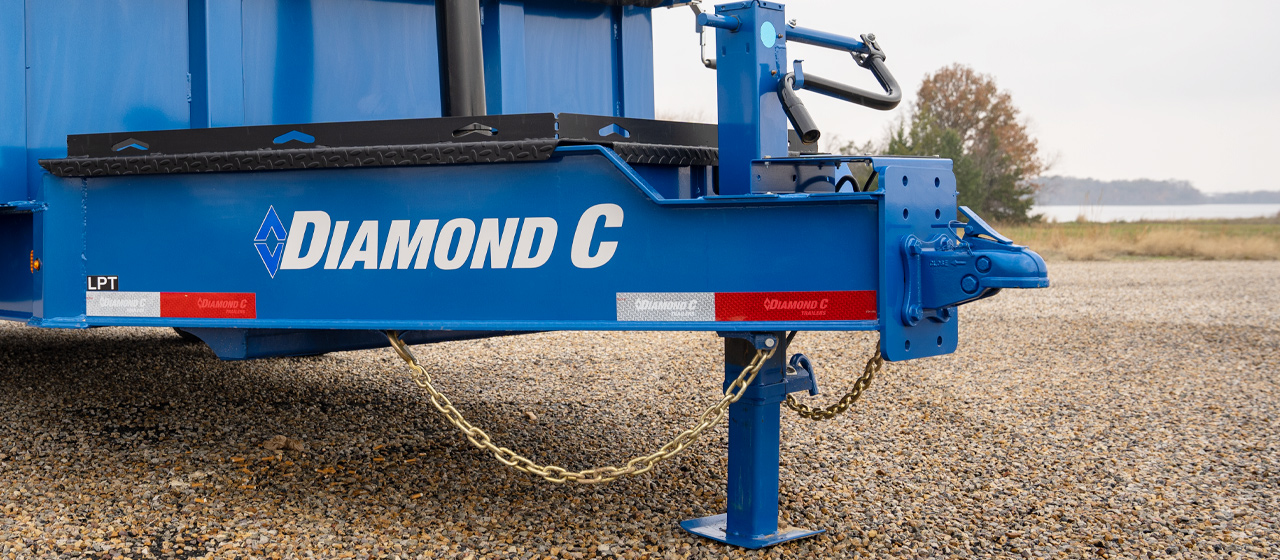

7,000 lb Drop-Leg Jack

Heavy duty, square, drop-leg trailer jack with a side-wind handle.

12,000 lb Drop-Leg Jack

Heavy duty, square, drop-leg trailer jack with a side-wind handle. Constructed of engineered alloys for enhanced strength, stability and side-load capability.

12,000 lb Hydraulic Jack

A must have for anyone who hooks and unhooks their trailer often! Fast, convenient, and strong.

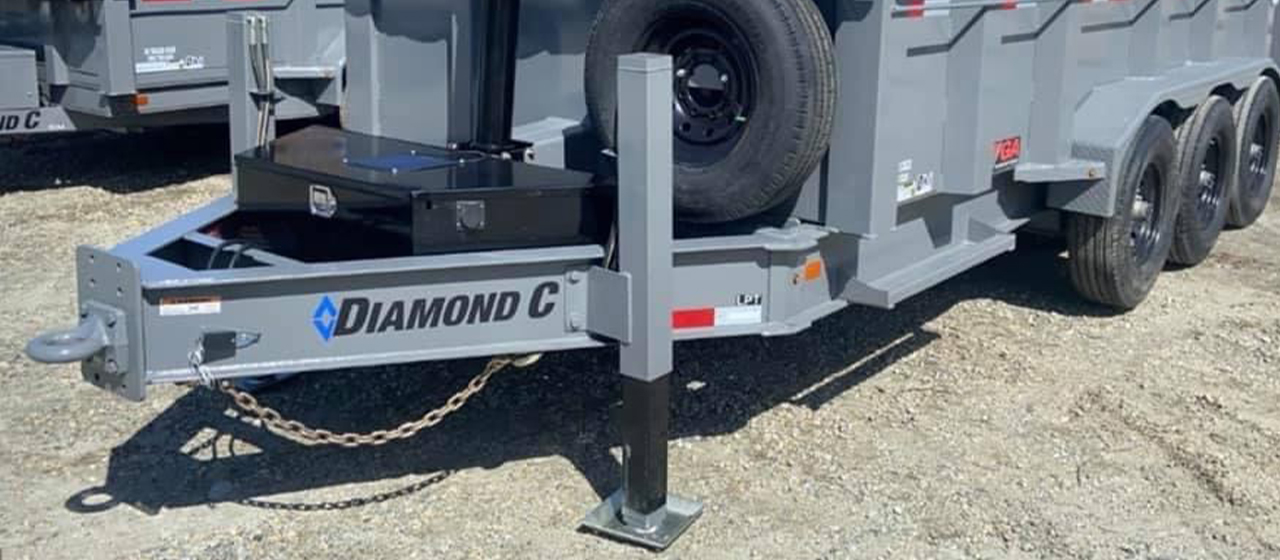

Dual 12,000 lb Hydraulic Jacks

A must have for anyone who hooks and unhooks their trailer often! Fast, convenient, and strong.

Dual 12,000 lb Drop-Leg Jacks

Two heavy duty, square, drop-leg trailer jacks with a side-wind handles. Included with Gooseneck Package.

Dual 12,000 lb Hydraulic Jacks

A must have for anyone who hooks and unhooks their trailer often! Fast, convenient, and strong.

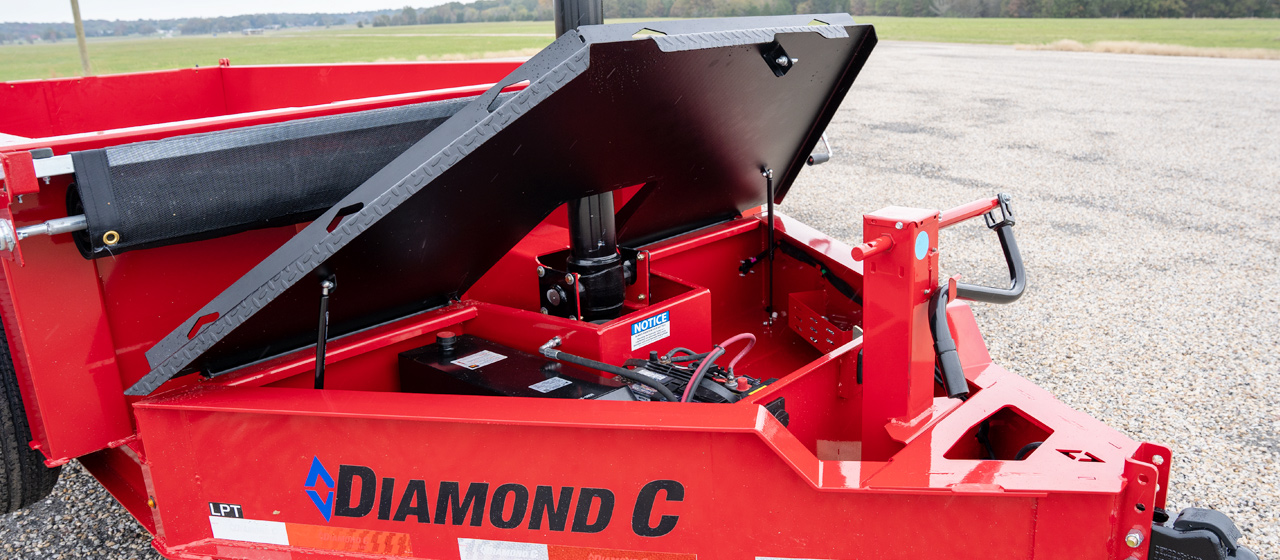

Storage

Full Width Diamond Plate Neck Box

(Included with Gooseneck Package)

Watch Video

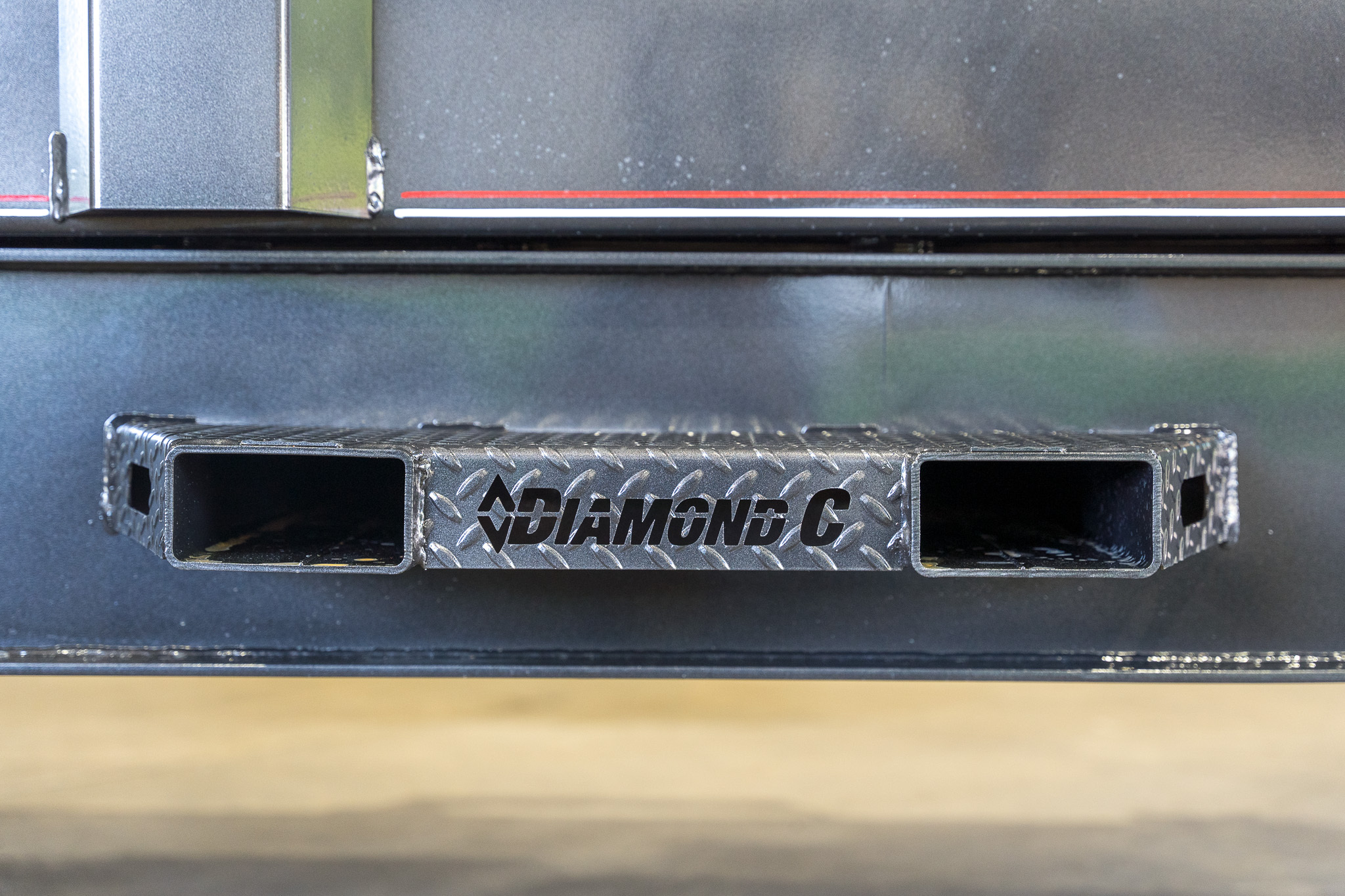

Steps

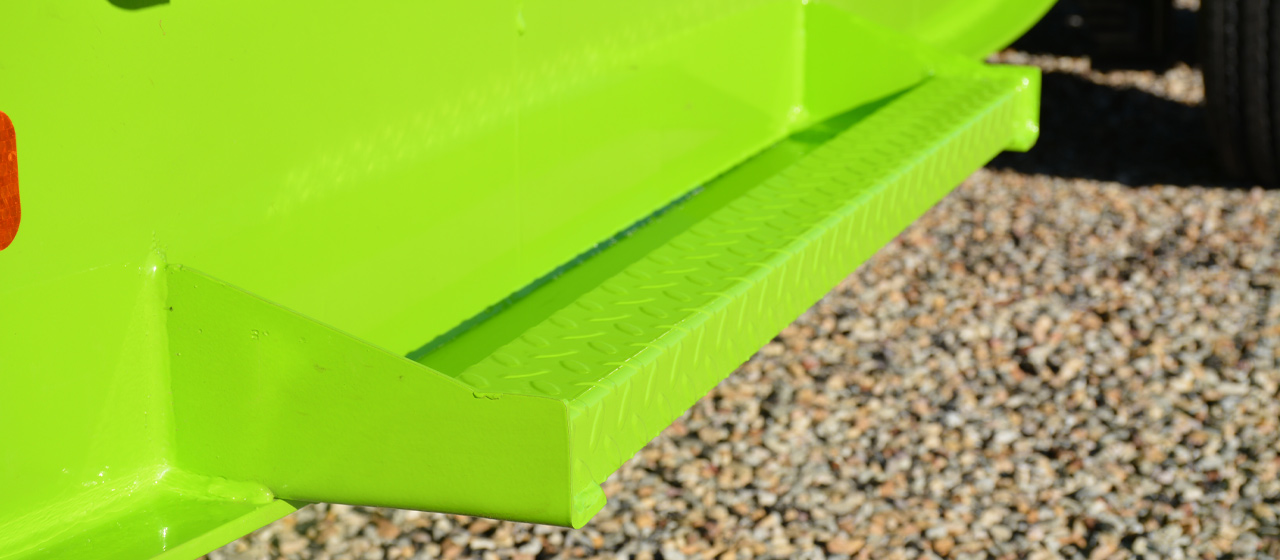

36" Side Step

Lights

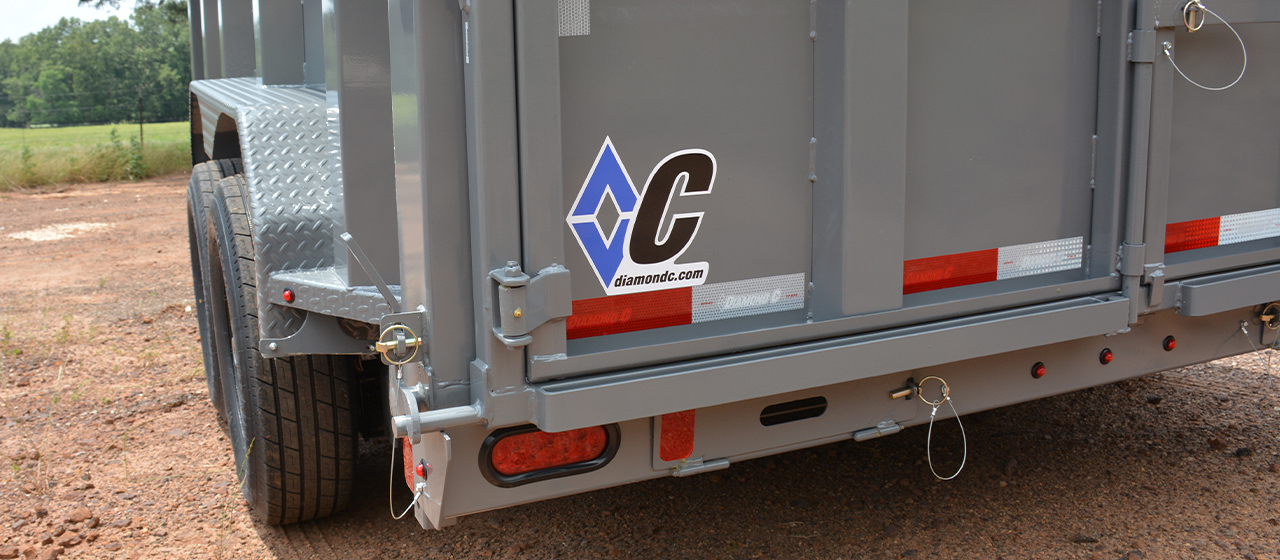

All LED Lights

Waterproof, all rubber-mounted, impact resistant, wired with a heavy duty wiring harness.

Bolt-On LED Flood Lights, 2700 Lumen (pair)

Stake Pockets

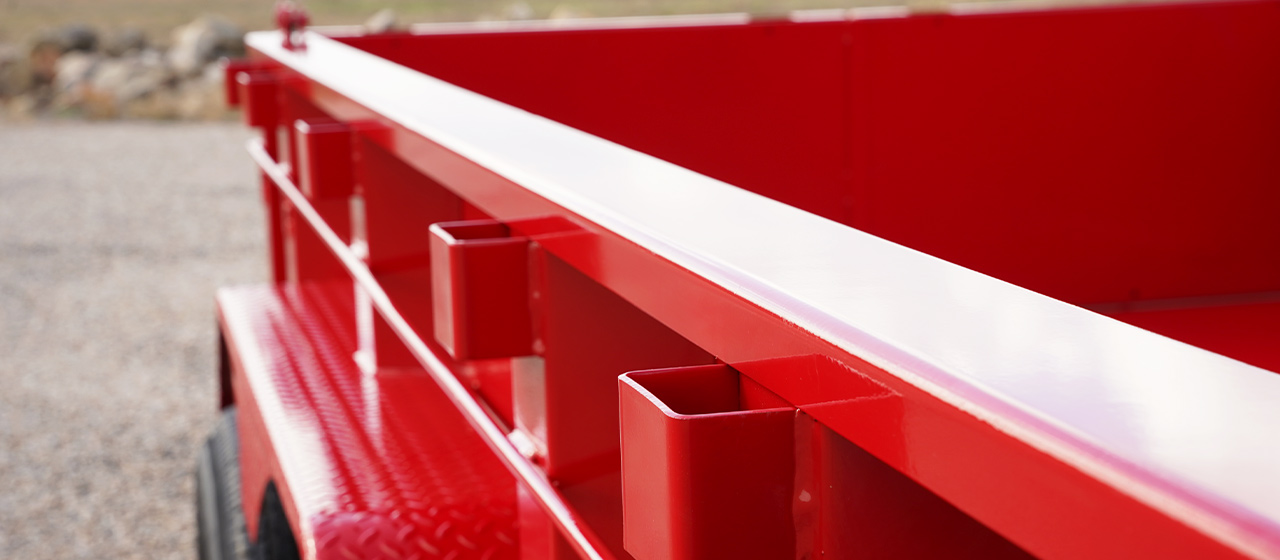

Stake Pockets on each Upright

Installed on each upright for use with optional 24" side extensions.

Tie Downs

4 - 5/8" D-Rings

Extra 5/8" D-Rings

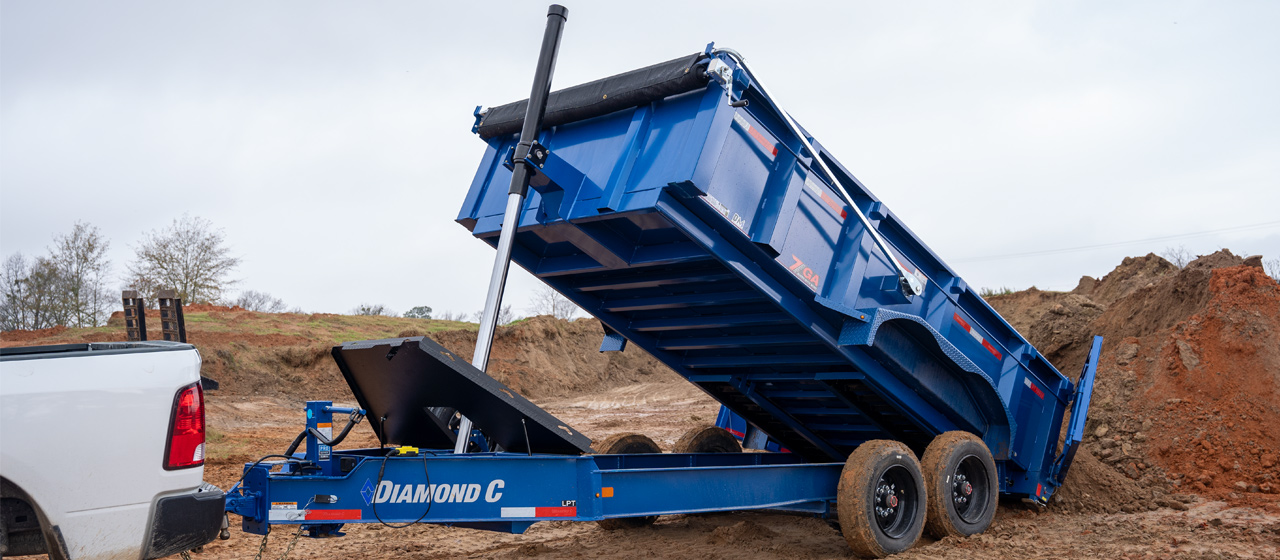

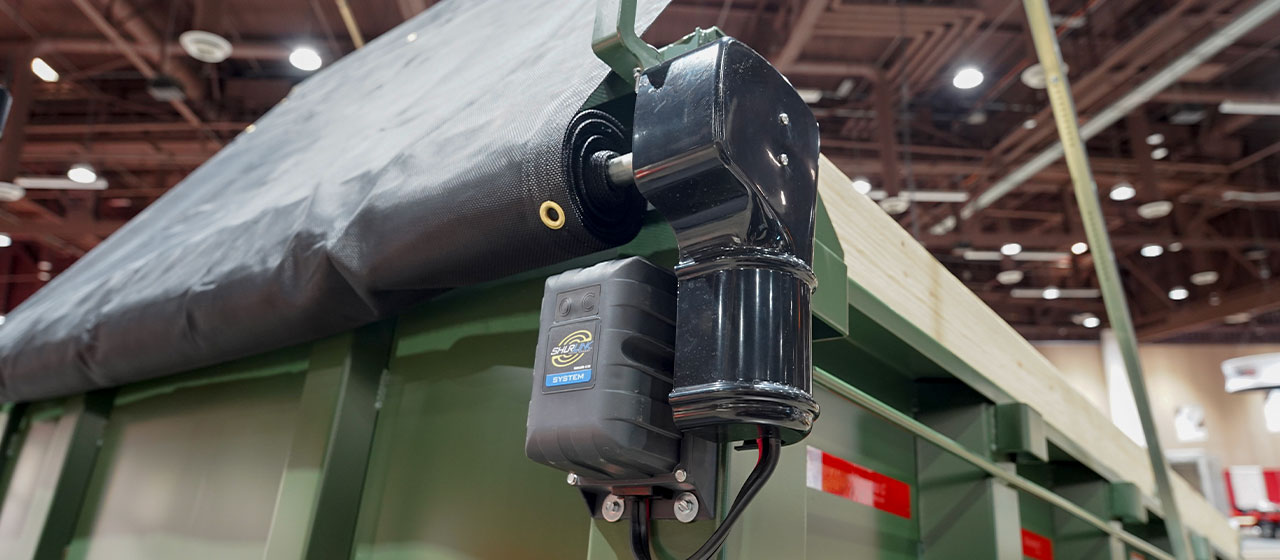

Tarp

Tarp Brackets

Provides tarp mounting position under a bulkhead that protects the tarp system from falling debris while not obstructing the loading area above the dump body.

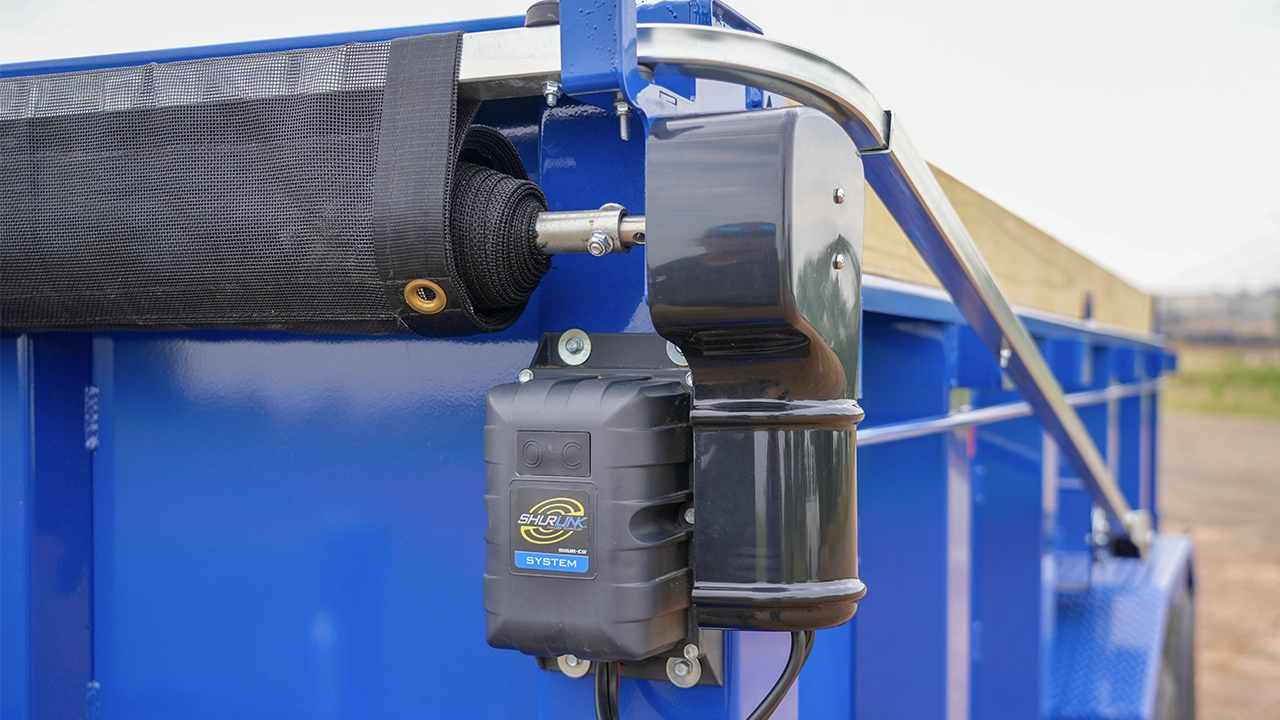

20' Heavy Duty, Black Mesh Tarp

The heavy duty mesh roll tarp system tightens easily with its multiple locking point system, and fits securely under the bulkhead for greater tarp protection.

Watch Video
