Single Wheel Tandem Axle Gooseneck Trailer

Model: FMAX207

Sporting a class exclusive patented 14” Engineered Beam frame, the FMAX207 is in a league of its own.

Build Your Own Trailer

Engineered Beam Technology

We design, engineer, and build our own I-Beams. Our U.S. Patent Protected ENGINEERED BEAM design allows for the tallest and strongest beams in the industry, with the best strength-to-weight ratios on the road.

READ MORE

FMAX Engineered Beam Technology & Logo

FMAX207 Standard Features

15,500 lb GVWR
20′ – 35′ Lengths
14″ Low Profile Engineered Beam Frame
2 – 7,000 lb Lippert Axles
Max Ramps, XDR Ramps, 12′ Hydraulic Dovetail, or Rear Slide-In Ramps

Taller beam. Lighter Weight. Stronger Frame.

FMAX Overview Diagram

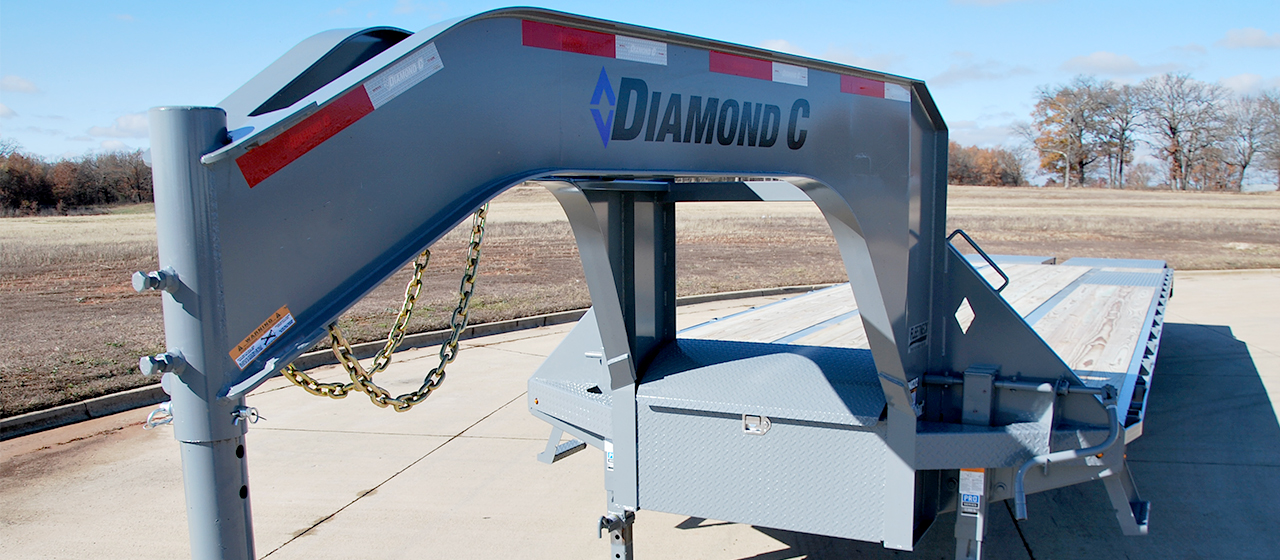

  1. The Neck – Curves distribute force throughout the neck so there is no concentration of stress in corners like traditional goosenecks.
  2. The Deck – It’s low profile for easy access. Tire-covers are HD 3/16” diamond plate. Boards are capped at each end of the deck for added durability.
  3. The Camber – The deck and frame have a slight camber when not loaded. When loaded, it flexes as necessary to level but never sags like traditional goosenecks.

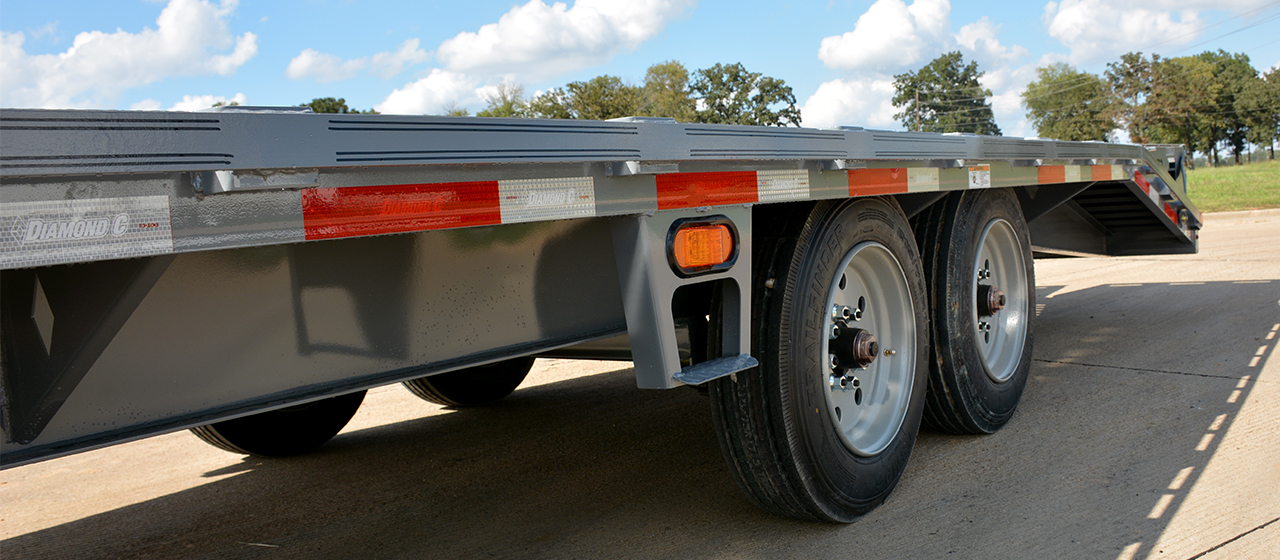

  4. The Lace-rail – Channel-Iron for durability and versatility with no notches or cut-outs for maximum strength. Includes stake-pockets and pipe-spools.

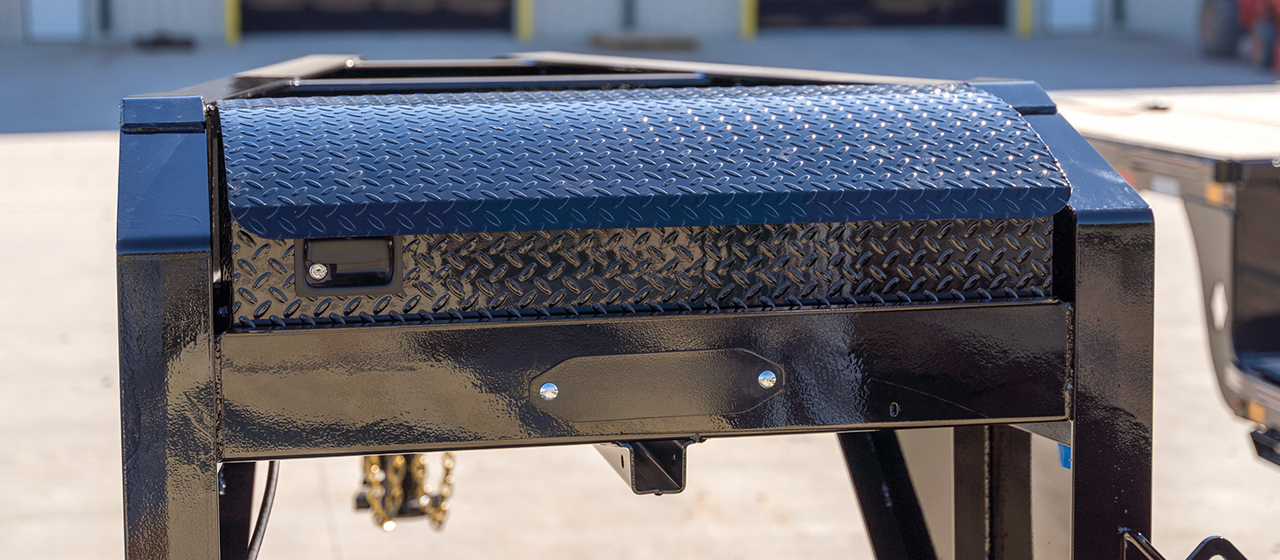

  5. The Box – It’s big and roomy. The lid is curved for added rigidity and gas spring assisted for easy operation.
  6. The Steps – The retractable front deck steps solve the common issue of traditional front deck steps being bent in low clearance situations. The mid-deck side turn signal step makes for easy access when equipment is loaded.
  7. The I-Beams – We engineer the beams, optimize them, and build them for each trailer configuration just like semi trailer manufacturers have been for decades. Our I-beam frames are taller, stronger, and lighter than your neighbor’s. 14-18″ tall. Standard steel bends at 36 ksi. Our beams are built using steel rated at 50 ksi minimum.

Loading Your Way

Max Ramps

Max Ramps

44″ wide ramps for MAX versatility. 50 ksi steel ramp frames x 4 frames per ramp for MAX strength. HD Spring loaded for easy lifting. For safe, stable loading. Read more HERE.

WATCH VIDEO

12' Hydraulic Dovetail

12' Hydraulic Dovetail

12’ long with easy to climb, 12.5 degree approach angle. Includes Blackwood rubber-infused runners for traction, automatic latch for easy operation, and wireless remote control. Read more HERE.

WATCH VIDEO

Find a Dealer Map

How Do I Order an FMAX207?

Great question! Keep scrolling to customize and build your FMAX207 gooseneck trailer to your liking with our interactive build-your-own trailer configurator, then then you will be prompted to submit your trailer build to your nearest Diamond C dealer for quote and availability. We have an extensive dealer network of almost 200 dealers strategically placed throughout the USA and Canada.

Popular Upgrades

Bolt-on LED Floodlights

Bolt-On LED Flood Lights

At 2700 Lumen, these work lights will help brighten up your nighttime grind. Learn more about our LED Lights HERE.

FMAX207 Black Wheels

Tire/Wheel Options

Upgrade your FMAX207 with Black or Two Tone Aluminum WHEELS. Or beef up the tire selection with 14 ply tires or even a heavy duty 17.5 TIRE UPGRADE.

More Than Just a Trailer…

35 years ago a young East Texas couple embarked on a journey that at the time was merely a means to put food on the table for their growing family. Unbeknownst to them, their nature would have an endless impact on the business they would create…

OUR STORY

DM Powder Coating System

DM Powder Coating System

Our custom Difference Maker Coating System produces extraordinary trailer finishes that are exceptionally durable and beautiful. We offer multiple standard and custom COLORS to perfectly compliment your trailer.

COATING SYSTEM

Learning Center

Your one-stop-shop for everything trailer related. In-depth articles and resources about our trailers, options, culture, and what makes us stand apart from the other guys.

CHECK IT OUT

Maximum Customizability

Choose from a variety of upgrades:

HYDRAULIC JACKS
BLACKWOOD LUMBER FLOORING
SHOCKER HITCH COUPLER
SLIDE TRACK & RATCHETS
CUSTOM COLORS
– and more…

The choice is yours.
Configure your ideal trailer below.

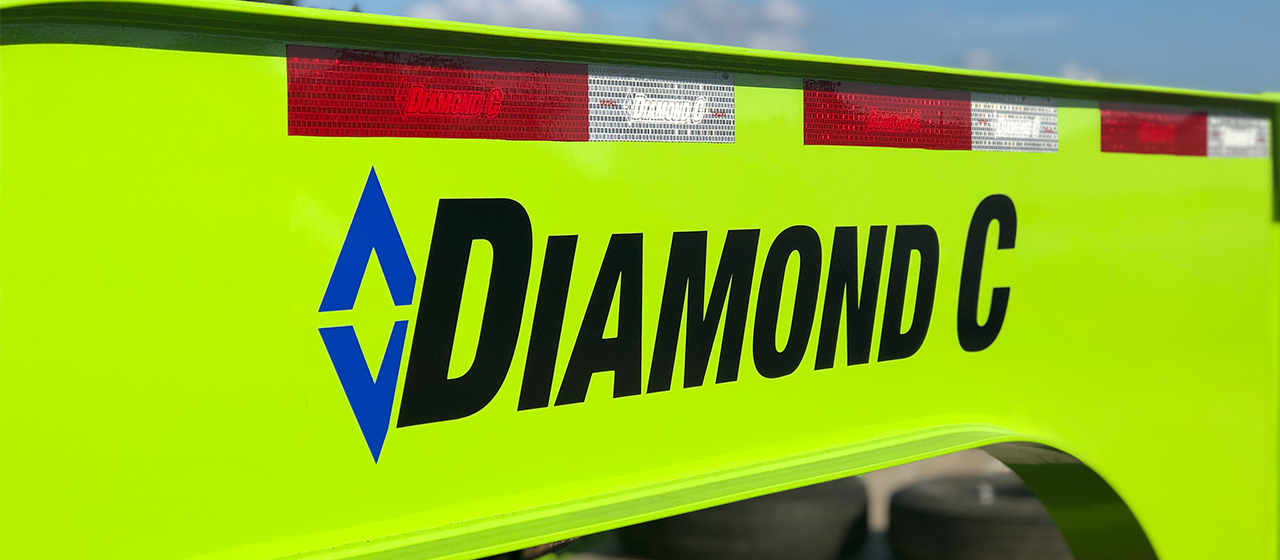

Custom Paint Color Neon Green
Synchrony and Sheffield Logos

Finance Your Trailer

Finance a brand new FMAX207 with ease through one of our trusted financial partners. Find out more HERE.


Diamond C Warranty Logo

Quality You Can Trust

We are proud of our trailers and stand by them. Every Diamond C trailer comes with an industry leading 3 Year WARRANTY.


Fleetneck Style

Max Ramps

44" wide ramps for MAX versatility. 50 ksi steel ramp frames x 4 frames per ramp for MAX strength. HD Spring loaded for easy lifting from deck and from ground. For safe, stable loading.

Watch Video
X
XDR Ramps

24" Wide x 60" Extreme Duty Knee Ramps. These spring-assisted ramps are perfect for loading concentrated machines such as backhoes and excavators where space between the ramps is a necessity for knuckle height clearance.

X
12' Hydraulic Dovetail

12' long with easy to climb, 12.5 degree approach angle. Blackwood rubber-infused runners for traction. Automatic latch for easy operation. Includes wireless remote control.

Watch Video
X
Straight Deck

Includes 96" Rear Slide-In Ramps (3" Channel). Single piece bumper with light protection.

X

Length/Width

GVWR

Includes 2 - 7,000 lb Lippert Axles

X

Ramps

Dove

Wood Filled Dove/Ramp

Ideal for loading equipment with steel tracks.

Watch Video
X
12' Fully Automatic Hydraulic Dovetail

12.5 degree load angle with Blackwood infused lumber and automatic latch.

X

Jack

2 - 12,000 lb Drop-Leg Jacks

Two heavy duty, square, drop-leg trailer jacks with a side-wind handles. Constructed of engineered alloys for enhanced strength, stability and side-load capability.

X
2 - 12,000 lb Hydraulic JacksX
2 - 12,000 lb Hydraulic Jacks w/ Hydraulic DovetailX

Battery/Charger

Optional w/ Hydraulic Dovetail or Hydraulic Jack options

Paint Type

DM Difference Maker Coating System Logo

We partnered with Sherwin Williams to develop our own custom designed powder coat finishing system that provides long-lasting, rugged, and beautiful trailer finishes.

X
Special Color

Choose from a variety of our Special Colors below, or enter your own custom color of choice.

X

Paint Color

Axles

Brakes

Frame

14X

Cross-Members

Floor

2

Installed after painting to ensure no framing is left unfinished. Floor is secured with 5/16" screws and a bolt-on board cap.

X
Blackwood Lumber Outer

Blackwood is rubber infused, pressure treated pine flooring that provides enhanced traction in the wettest conditions, outstanding impact resistance in the toughest environments, and increased flooring lifespan from its no fade, no crack technology.

Watch Video
X
Blackwood Lumber Full

Blackwood is rubber infused, pressure treated pine flooring that provides enhanced traction in the wettest conditions, outstanding impact resistance in the toughest environments, and increased flooring lifespan from its no fade, no crack technology.

Watch Video
X

(On Every Cross-Member)

X

Neck

12

Curves distribute force throughout the neck so there is no concentration of stress in corners like traditional goosenecks.

X
6

This option raises the coupler and horizontal neck height +6". Ideal for lifted vehicles (ex. Dodge 3500 with 4"-6" lift) or Semi-Tractor applications.

X

Coupler

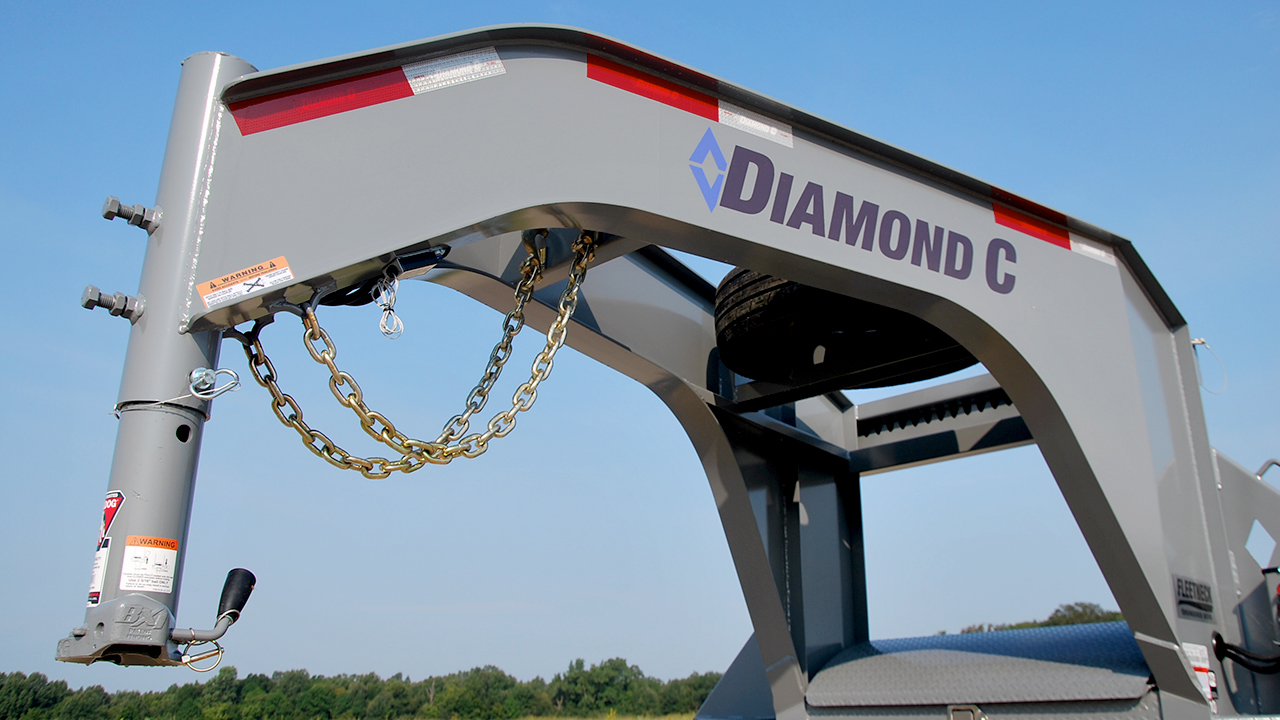

25,000 lb Bulldog BX1

(Round Adjustable)

X
30,000 lb Bulldog Square Load Leveler

Heavy-duty, high-strength, steel construction with an easy to use vertical adjustment design for a quick and secure connection on the road.

X
Shocker Hitch Air Ride Coupler

Air Ride towing for a smoother, safer ride. Shocker Hitch helps to eliminate the jerks felt when towing on rough roads by directing the tow resistance through an airbag, producing a smooth ride. Utilizes the BX1 Coupler.

Watch Video
X
King-Pin Adapter

(Round Adjustable)

X

Storage

Chain Tray

(In Top of Neck. Not Applicable w/ Winch Plate)

X

Deck on the Neck

Bolt-on Deck on the Neck

7' x 8' Bolt-on Deck with Clearance Lights

X
Weld-on Deck on the Neck

7' x 8' Weld-on Deck with Clearance Lights

X

Lace Rail

Tie Downs

Stake Pockets

Slide Track & Ratchets

Full Length Slide Track (passenger side)

(Includes 1 welded ratchet between wheels)

X
Full Length Slide Track (driver side)

(Includes 1 welded ratchet between wheels)

X

Steps

(on rear of trailer)

X

Wiring

Lights

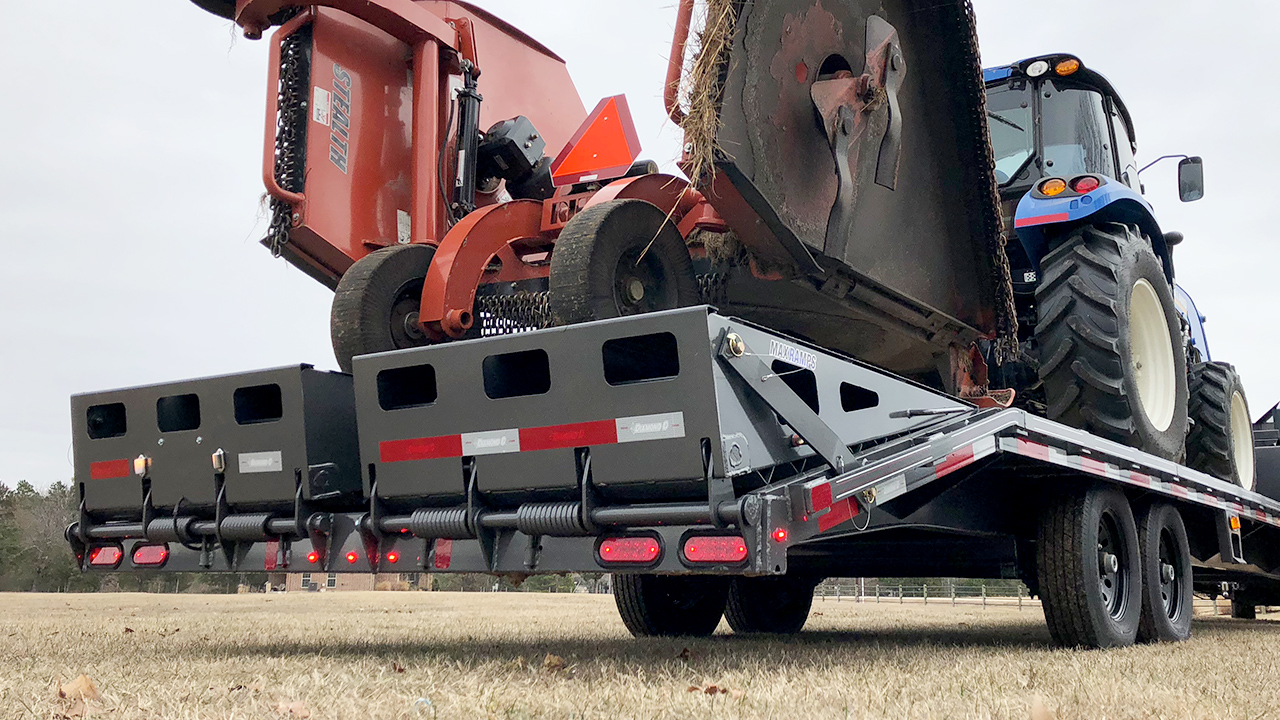

All LED Lights

Waterproof, all rubber-mounted, impact resistant, wired with a heavy duty wiring harness.

X

Sway Control

Winch

Winch Mounting Plate w/ Receiver Tube

(In Top of Neck. Not Applicable w/ Chain Tray)

X
12K Warrior Winch Box Package

Includes battery, 5amp charger, and winch mounting plate.

Watch Video
X
17.5K Warrior Winch Box Package

Includes battery, 5amp charger, and winch mounting plate.

Watch Video
X

Tire Size

215/75R17.5 Radial

Our Heavy Duty Tire/Wheel Package. Includes 5/8" Studs.

X

Wheel Color

Spare Mount

Spare Wheel Color

Spare Tire Size

Suspension

Rubber Torsion Suspension Axles: Improves suspension characteristics of leaf spring axles.
