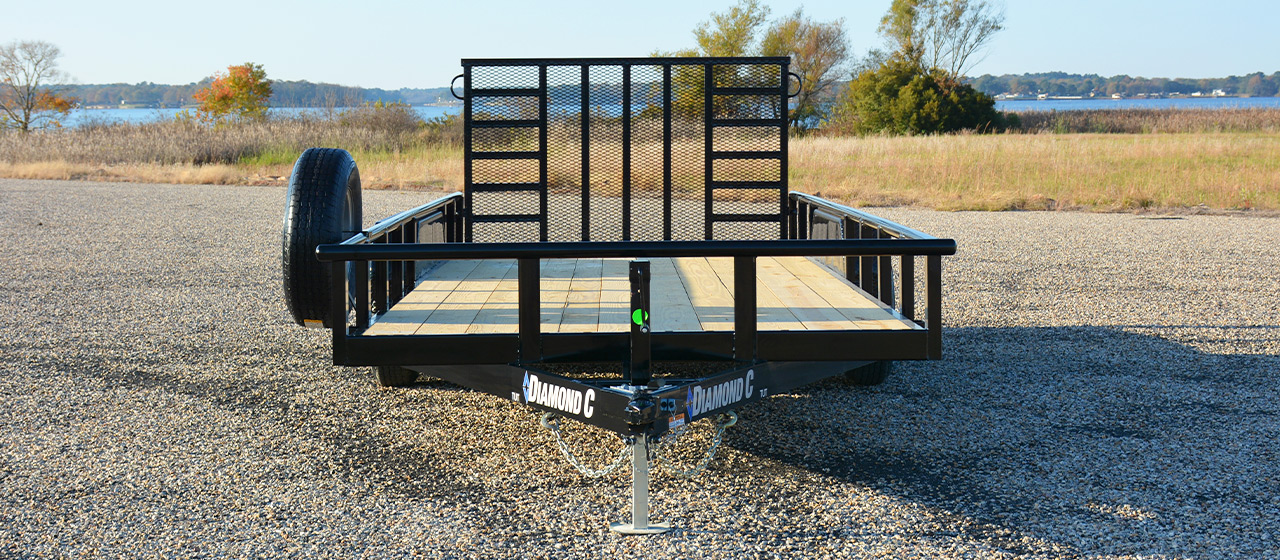

"TEXAS" TANDEM AXLE UTILITY TRAILER

Model: TUT

A trailer built in true Texas fashion for the intermediate user. Exceptional versatility.

Build Your Own Trailer

GVWR

252 Package (9,890 lb GVWR)

Axles

2 - 5,200 lb Super Lube, 1 Electric Brake

Learn More

2nd Electric Brake

Frame

4" Channel

5" Channel w/ 3" Channel Cross-Members

Tongue

5" Channel, Full Wrap

Cross-Members

2" Engineered Channel (7 ga) on 16" Centers

Made from Grade 50 material for added durability.

2" Engineered Channel (7 ga) on 12" Centers

Made from Grade 50 material for added durability.

3" Channel on 16" Centers

Floor

2" Treated Lumber

Installed after painting to ensure no framing is left unfinished. Floor is secured with 5/16" screws and a bolt-on board cap.

1/8" Diamond Plate

Sides

13" Tall Open

24" Tall Open

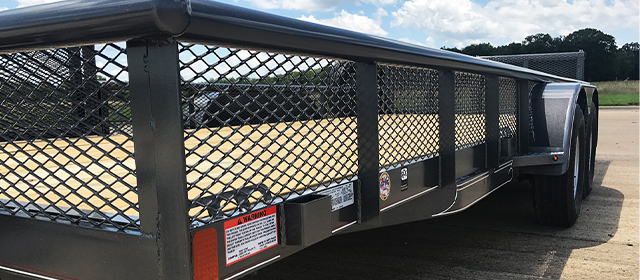

Regular Height Expanded Metal Sides

24" Tall Expanded Metal Sides

Top Rail

2-3/8" Balled-end Pipe, 13 ga

Permanently sealed, safe and ergonomic.

3" x 2" x 3/16" Angle Iron

2" Square Tube, 14 ga

Paint Type

DM Difference Maker Coating System

We partnered with Sherwin Williams to develop our own custom designed powder coat finishing system that provides long-lasting, rugged, and beautiful trailer finishes.

Special Color

Choose from a variety of our Special Colors below, or enter your own custom color of choice.

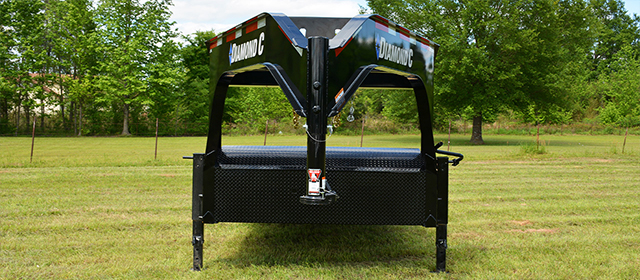

Gooseneck Package

12" x 14 lb I-Beam Gooseneck

Includes Bulldog BX1 Coupler, 2 - 12,000 lb Drop-Leg Jacks, Spare Mount, and Full-Width Diamond Plate Neck Box

Deck on the Neck

7' x 8' Weld-on/Bolt-on Deck with Clearance Lights

Gooseneck Coupler

Bulldog BX1

30,000 lb Load Leveler

Coupler

2-5/16" - 12,500 lb Sleeve-Lock

The sleeve-lock coupler has pin-style and wedge-latch lock. The wedge-latch lock applies continuous tension to the trailer ball for worry-free towing.

2-5/16" - 12,500 lb Bulldog

Heavy duty Bulldog coupler has pin-style locking and hinged ball socket that offers a tight fit around the trailer ball to ensure quick, easy and secure hookup.

2-5/16" - 15,000 lb Adjustable Cast

The 5 position adjustable coupler is made of high-strength cast steel with a wedge-latch lock. The wedge-latch lock applies continuous tension to the trailer ball for worry-free towing.

2-5/16" - 21,000 lb Demco EZ-Latch Adjustable

Adjustable Pintle Ring

Durable and sturdy steel construction designed for pintle hitches.

Jack

7,000 lb Drop-Leg Jack

Heavy duty, square, drop-leg trailer jack with a side-wind handle.

12,000 lb Drop-Leg Jack

Heavy duty, square, drop-leg trailer jack with a side-wind handle. Constructed of engineered alloys for enhanced strength, stability and side-load capability.

Dual 12,000 lb Drop-Leg Jacks

Two heavy duty, square, drop-leg trailer jacks with a side-wind handles. Constructed of engineered alloys for enhanced strength, stability and side-load capability.

Dual 12,000 lb Drop-Leg Jacks

Two heavy duty, square, drop-leg trailer jacks with a side-wind handles. Included with Gooseneck Package.

Storage

No Storage

10" Lockable Steel Tongue Box

16" Lockable Steel Tongue Box

Lockable Aluminum Tongue Box

Expanded Metal 24" x 24" x Width of Trailer

(Bolt-on)

Full Width Diamond Plate Neck Box

(Included with Gooseneck Package)

Watch Video

Lights

All LED Lights

Waterproof, all rubber-mounted, impact resistant, wired with a heavy duty wiring harness.

Stake Pockets

6 Stake Pockets

Extra Stake Pockets

Tie Downs

1/2" D-Rings

3-Hole Tie Bars

Loading Style

Choose Loading Style:

Ramp Gate

Ramps

Ramp Gate

48" Tractor Gate, Spring-Assisted

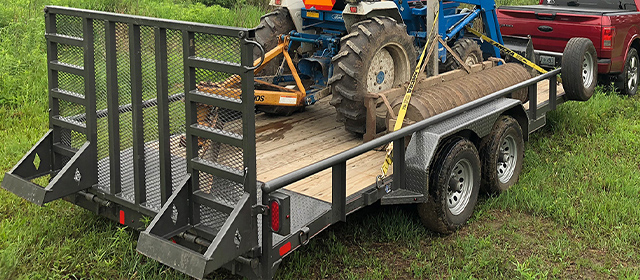

48" Heavy Duty Gate w/ Support Knee

(w/ Extra Uprights, Spring-Assisted)

60" Heavy Duty Gate w/ Support Knee

(w/ Extra Uprights, Spring-Assisted)

Gate Add-ons

Extra Ramp Gate Spring

Ramps

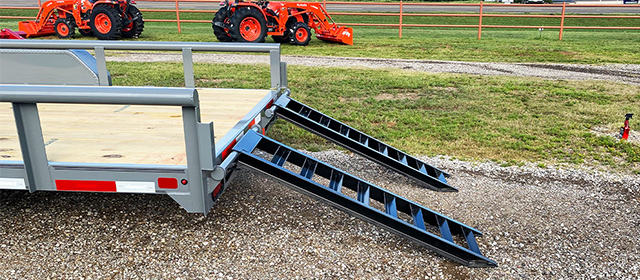

60" Rear Slide-In Ramps (3" Channel)

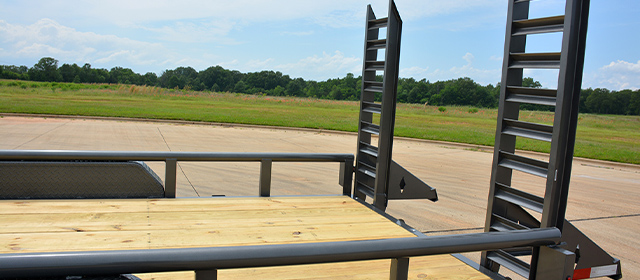

60" Flip-Knee, Spring-Assisted Ramps (3" Channel)

Loading Stabilizer

Rear Stabilizer Drop Legs

Side Load

No Side Load

48" Side Bi-Fold Gate (1.5" Square Tube)

Our original Bi-Fold Gate design folds in the center with the help of a gas spring to improve visibility, reduce wind drag, and increase fuel economy. (60" Wide)

Watch Video

48" Side Bi-Fold Gate (2" Square Tube)

Our original Bi-Fold Gate design folds in the center with the help of a gas spring to improve visibility, reduce wind drag, and increase fuel economy. (60" Wide)

Watch Video

Front-Side Ramps & 2 Extra Tie Bars
