EDS Single Axle Dump Trailer - Diamond C Trailers

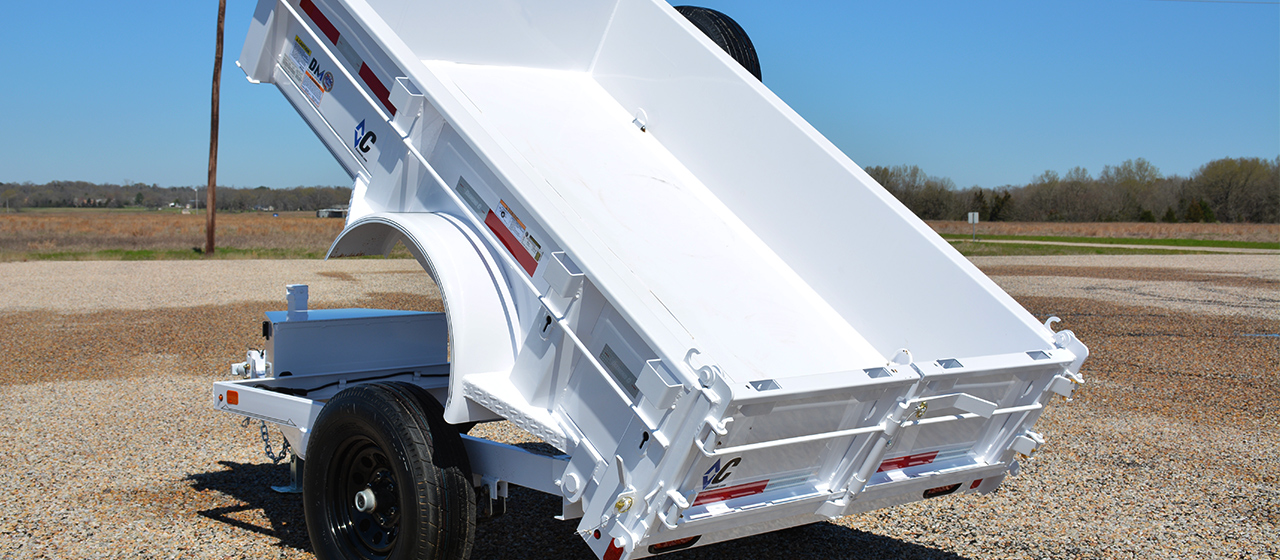

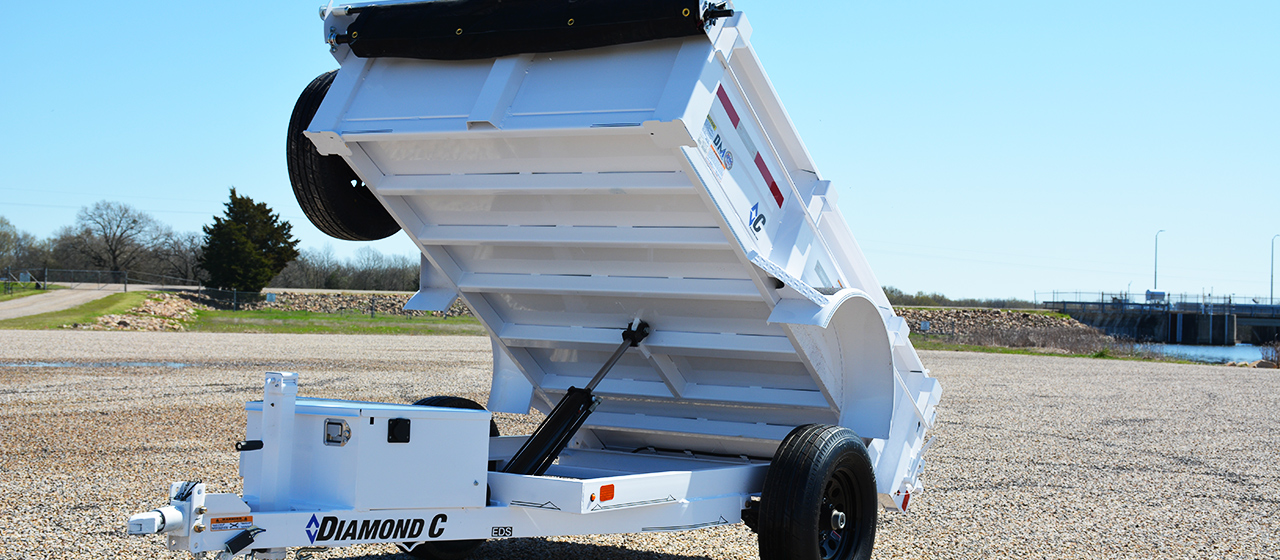

SINGLE AXLE DUMP TRAILER

Model: EDS

With up to 3.6 cubic yard capacity, it’s the perfect choice for handyman projects around the house or on the farm.

Build Your Own Trailer

GVWR

152 Package (5,000 lb GVWR)

Axles

5,200 lb E-Z Lube, Electric Brake

Dump Main Frame

4" Channel

Dump Body Frame

3" x 1.5" Rectangle Tube

Tongue

4" Channel Tongue, w/ Pump Box

Body Thickness

12 ga Body, Sides Integral with Floor

Sides

18" Tall Sides (12 ga)

24" Tall Sides (12 ga)

32" Tall Sides (12 ga)

Side Extensions

None

24" Side Extensions (Expanded Metal)

Board Brackets w/ Raised Front

Cross-Members

3" Channel on 16" Centers

Paint Type

DM Difference Maker Coating System

We partnered with Sherwin Williams to develop our own custom designed powder coat finishing system that provides long-lasting, rugged, and beautiful trailer finishes.

Special Color

Choose from a variety of our Special Colors below, or enter your own custom color of choice.

Coupler

2" - 7,000 lb Adjustable Sleeve-Lock

The 5 position adjustable sleeve-lock coupler has pin-style and wedge-latch lock. The wedge-latch lock applies continuous tension to the trailer ball for worry-free towing

2" - 8,000 lb Cast

Made of high-strength cast steel with wedge-latch lock. The wedge-latch locking applies continuous tension to the trailer ball for worry-free towing.

2" - 7,000 lb Bulldog

Heavy duty Bulldog coupler has pin-style locking and hinged ball socket that offers a tight fit around the trailer ball to ensure quick, easy and secure hookup.

2" - 10,000 lb Demco EZ-Latch

Jack

7,000 lb Drop-Leg Jack

Heavy duty, square, drop-leg trailer jack with a side-wind handle.

Lights

All LED Lights

Waterproof, all rubber-mounted, impact resistant, wired with a heavy duty wiring harness.

Stake Pockets

Stake Pockets on each Upright

Installed on each upright for use with optional 24" side extensions.

Tarp

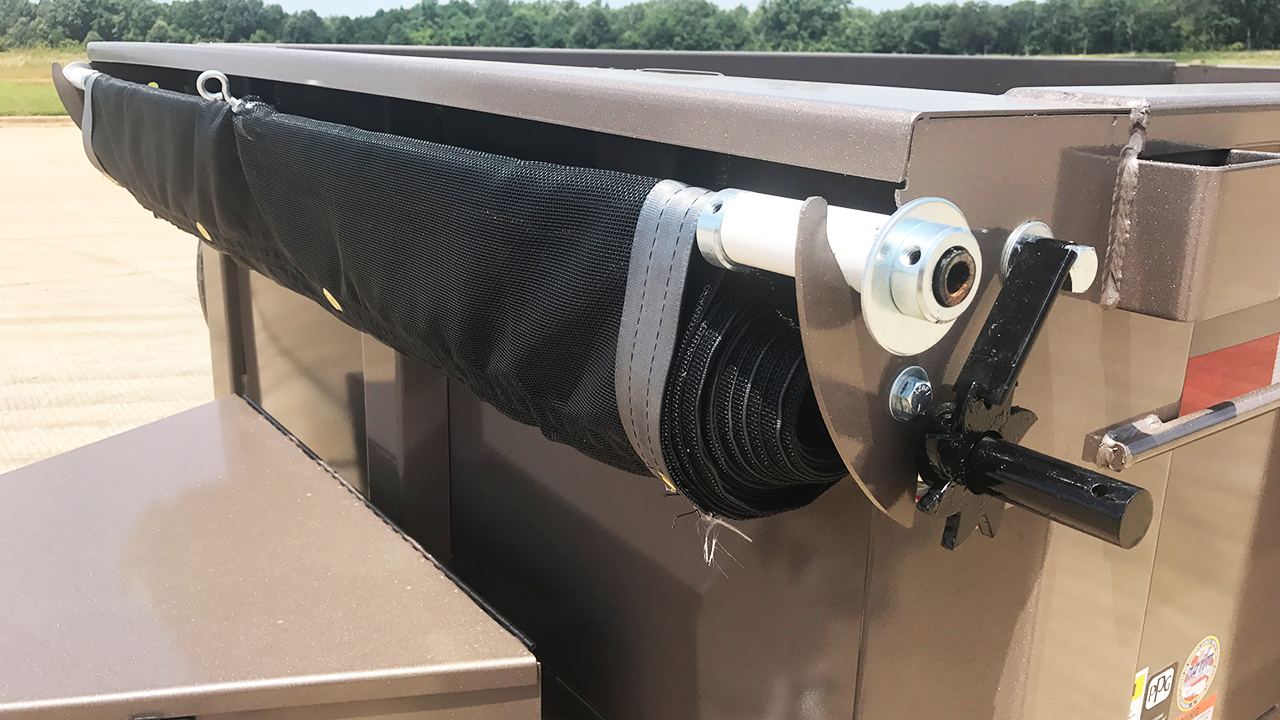

Tarp Brackets

Provides tarp mounting position under a bulkhead that protects the tarp system from falling debris while not obstructing the loading area above the dump body.

16' Heavy Duty, Black Mesh Tarp

The heavy duty mesh roll tarp system tightens easily with its multiple locking point system, and fits securely under the bulkhead for greater tarp protection.

18' Heavy Duty, Black Mesh Tarp

The heavy duty mesh roll tarp system tightens easily with its multiple locking point system, and fits securely under the bulkhead for greater tarp protection.
